Dual Lattice Method

Dual Lattice Element Method

Geomaterials, particular rocks, are multi-scale and multi-physics in nature (Figure 1). Dual Lattice Model (DLM) is a novel technique which involves coupling the solid lattice system and the fluid lattice system (Figure 2) to model the multi-physics problem. DLM is capable of modelling the fracturing process in multi-scale heterogeneous material, in particular, highly challenging hydraulic fracturing problem.

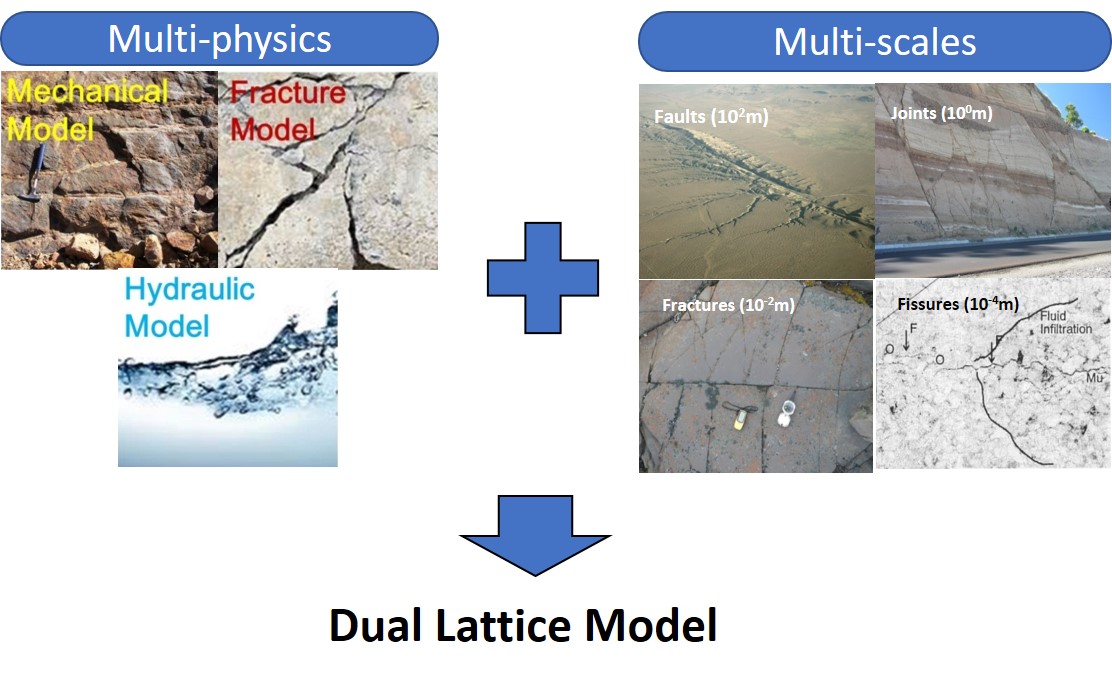

Figure 1. Multiscale modelling using DLM

Figure 1. Multiscale modelling using DLM

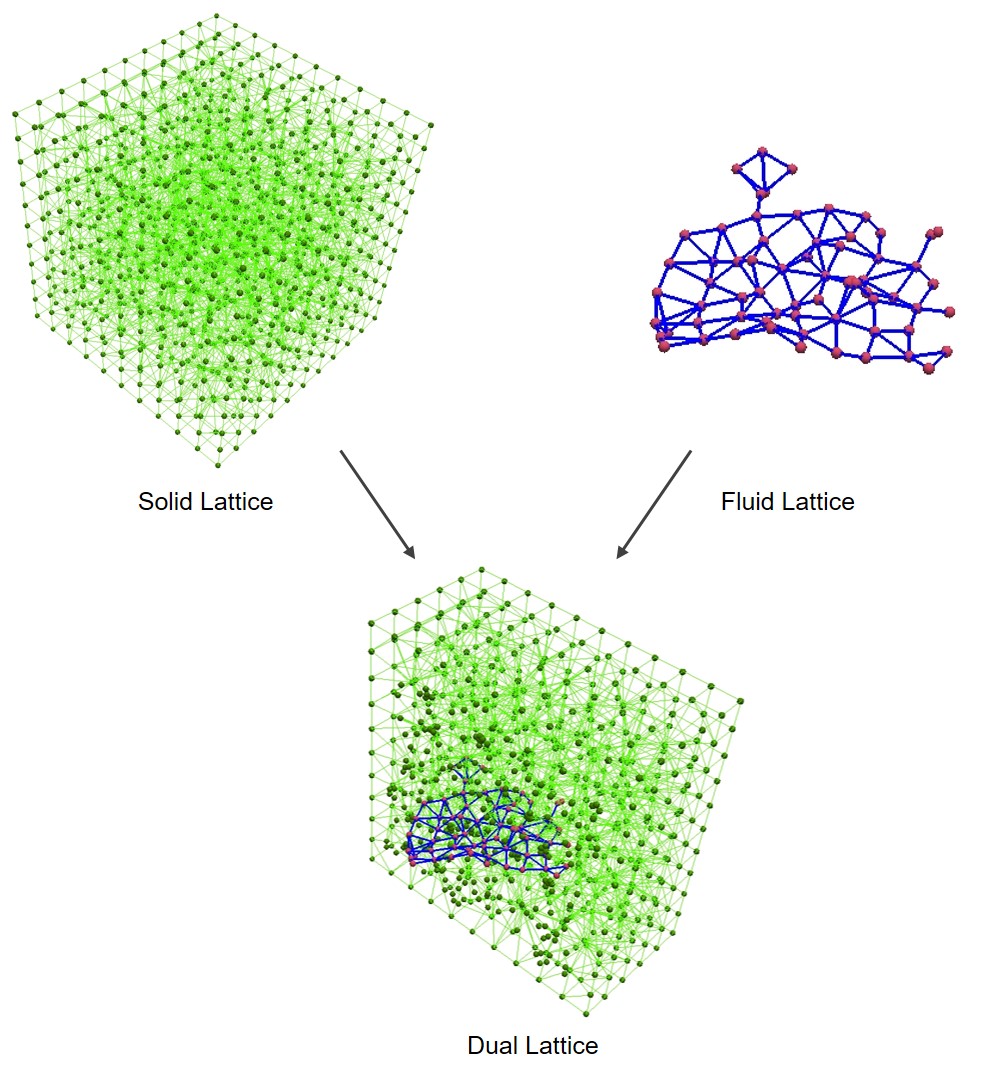

Figure 2. Dual Lattice Method (DLM)

Figure 2. Dual Lattice Method (DLM)

Figure 3 shows the basic elements of DLM: cells, lattices and nodes. A 3D solid material is sub-divided into cells by Voronoi tessellation. Solid lattices are a 3D representation of the solid material while the fluid lattice is a 2D representation of the fracture flow. The model simplifies a 3D multi-physics problem into 1D lattice network. The fluid and solid lattice networks are fully coupled and geometrically inter-dependent (Figure 4). The fracture surface, which is solid cell facets is represented by fluid node and their conductivity by fluid lattice. By such simplification, it has the capacity to handle multi-scale simulation.

Figure 3. Basic elements of DLM)

Figure 3. Basic elements of DLM

Figure 4. Coupled fluid-solid DLM network)

Figure 4. Coupled fluid-solid DLM network

As a discrete model, DLM is suitable to represent heterogeneous material and modelling processes which are disorder in nature, such as fracturing. Statistical distribution of material properties can be specified based on test observations such as acoustic emission in laboratory scale and micro-seismicity in field scale. In a continuum model, there are several parameters that describe the homogenised constitutive model, however it is not sufficient to describe the heterogeneous material behaviour. Also, continuum model is limited by its ability to handle complex fracturing processes.

DualLattice3D package

A C++ DualLattice3D code is under development at the Cambridge - Berkeley Computation Geomechanics Research Group. It is a three-dimensional model. It includes 5 main modules:

  • Pre-processing module: has the capacity to generate disorder lattice network, applying heterogeneity by including fractures and applying statistical distribution on lattice parameters.
  • Geometry module: handling , Voronoi cells, dual lattices system and fracture facets
  • A solid module: modelling deformations of lattice model and fracturing process.
  • Coupled Solid-Fluid module : coupled fluid calculation using cubic flow law.
  • Post-processing module: Graphical output and statistical analysis.

The solid lattice module has been validated by cantilever problem (Figure 5) and the penny shape problem (Figure 6) for coupled solid-fluid module. A parametric study of the fracturing process of heterogenous model is also carried out (Figure 7).

Figure 5. Validation of DLM: Cantilever beam)

Figure 5. Validation of DLM: Cantilever beam

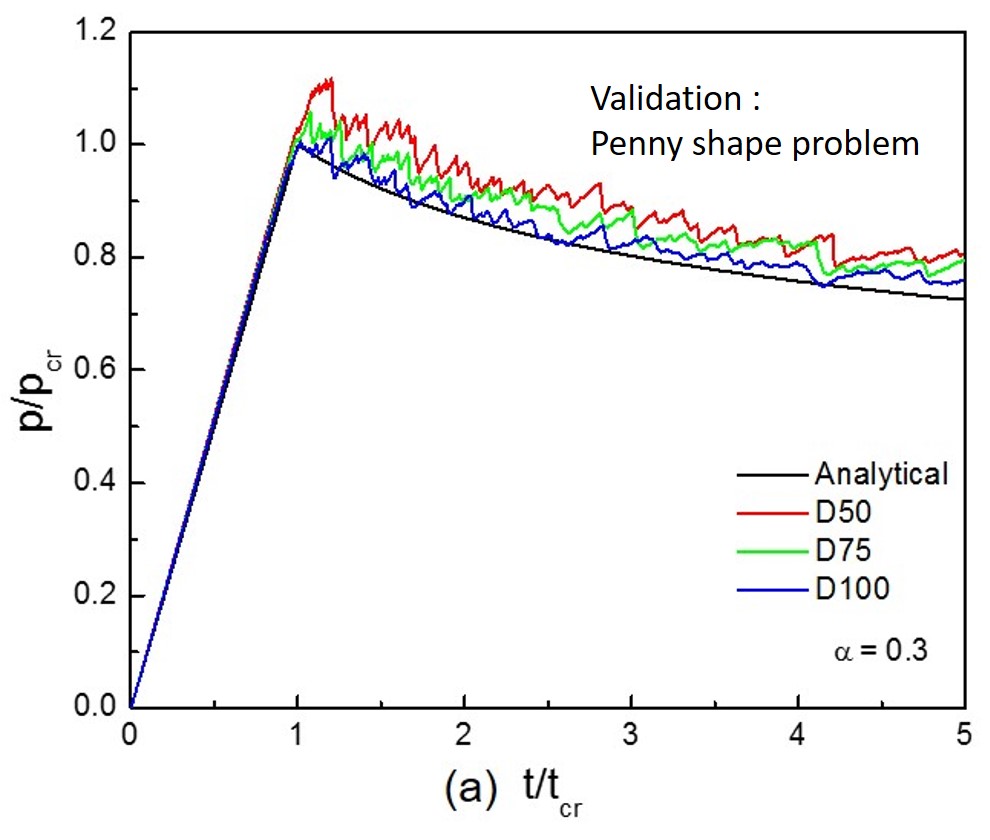

Figure 6. Validation of DLM: Penny shaped crack)

Figure 6. Validation of DLM: Penny shaped crack

A highly efficient parallelised preconditioned Conjugate Gradient Method which has capacity to handle millions of DOF problem in desktop computer, with future potential for large-scale simulation in High Performance Computer Utilising clusters of CPUs or GPUs. The solid-fluid coupling problem is handled by sophisticated numerical scheme for fast and stable solutions.

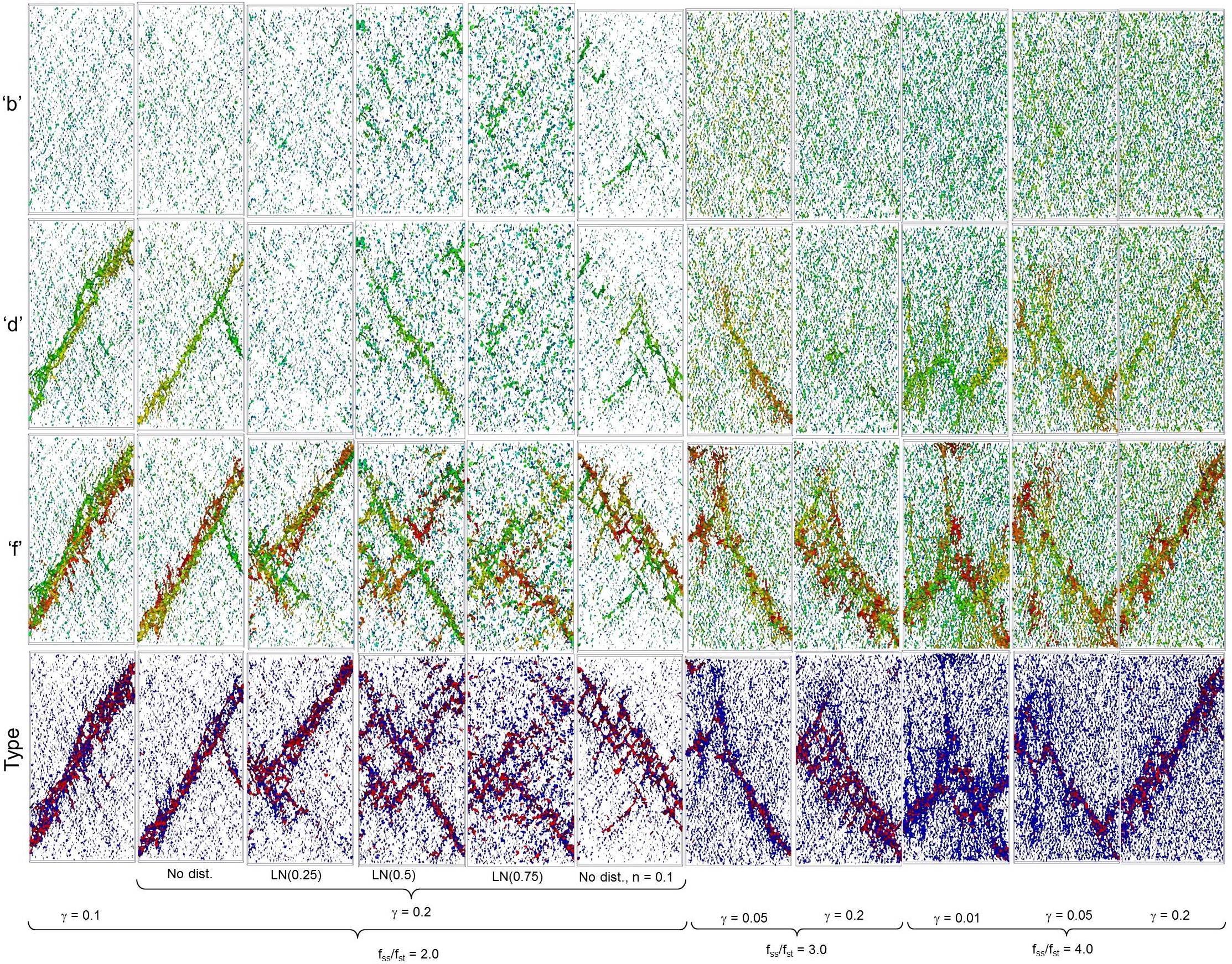

Figure 7. Fracturing heterogeneous material)

Figure 7. Fracturing heterogeneous material

Future potential

DLM offers the ability to perform large-scale 3D simulations without expensive computational effort. DLM also enables realistic modelling of field scale problems with adequate details for practical applications including but not limited to hydraulic fracturing. By the advancement of computation power and rapid development of Machine Learning and optimisation algorithms, field data can serve as training data and produce an evolving model for better accuracy and provide predictive power which is the industry need (Figure 8).

Figure 8. Potential applications of DLM)

Figure 8. Potential applications of DLM

Team

John Wong

PhD candidate, Cambridge
kwjw2@cam.ac.uk

Kenichi Soga

Professor, Berkeley
soga@berkeley.edu

Xiaomin Xu

Research Associate, Cambridge
xx787@cam.ac.uk

Krishna Kumar

Research Associate, Cambridge
kks32@cam.ac.uk

Maryam Alghannam

Masters student, Berkeley
maryamgh@berkeley.edu

Publications

J.K.-W. Wong, Three-dimensional multi-scale hydraulic fracturing simulation in heterogeneous material using Dual Lattice Model, Doctoral thesis, University of Cambridge, 2018. PDF

J.K.-W. Wong, K. Soga, X. Xu, J.-Y. Delenne, Three dimensional hydraulic fracturing simulation using Lattice Element Method. Proceedings of ISRM 13th International Congress on Rock Mechanics, Montreal, Canada, 2015.

J.K.-W. Wong, K. Soga, X. Xu, J.-Y. Delenne, Modelling fracturing process of geomaterial using Lattice Element Method. Proceedings of International Symposium on Geomechanics from Micro to Macro, Cambridge, United Kingdom, 2014.
